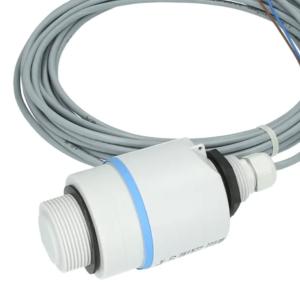

The Micropilot FMR10 is a compact, non-contact radar level sensor developed by Endress+Hauser, utilizing Time-of-Flight (ToF) technology to measure liquid levels. Operating at a frequency of 26 GHz, it offers precise measurements with an accuracy of ±5 mm (0.2 inches). This sensor is particularly suited for applications in water and wastewater treatment, as well as utility industries.
The Micropilot FMR10 is a compact, non-contact radar level sensor developed by Endress+Hauser, utilizing Time-of-Flight (ToF) technology to measure liquid levels. Operating at a frequency of 26 GHz, it offers precise measurements with an accuracy of ±5 mm (0.2 inches). This sensor is particularly suited for applications in water and wastewater treatment, as well as utility industries.
Key Specifications
Smart Connectivity
The FMR10 features Bluetooth® connectivity, enabling wireless commissioning, operation, and maintenance via the SmartBlue mobile app. This functionality allows users to visualize signal curves and manage device settings remotely using smartphones or tablets (iOS/Android), simplifying setup and monitoring processes.
Applications
Ideal for continuous level measurement in various liquid applications, including:
The FMR10's compact design makes it suitable for installations in confined spaces, and its robust construction ensures reliable performance in challenging
|
Feature |
Specification / Description |
|
Technology |
Non-contact radar, Time-of-Flight (ToF) |
|
Frequency |
26 GHz |
|
Measuring Range |
Standard: up to 8 m (26.2 ft) |
|
Accuracy |
±5 mm (0.2 in) |
|
Temperature Range |
-40 to +60°C (-40 to +140°F) |
|
Pressure Range |
-1 to +3 bar (-14.5 to +43 psi) |
|
Ingress Protection |
IP66/IP68, NEMA 4X/6P |
|
Materials |
PVDF, PBT/PC (resistant to chemicals and outdoor conditions) |
|
Connectivity |
Bluetooth® for wireless setup, operation, and maintenance via SmartBlue app |
|
Applications |
Storage tanks, open basins, pump/lift stations, sewer management systems |
|
Advantages |
Compact design for confined spaces, robust construction, precise level measurement in harsh environments |
